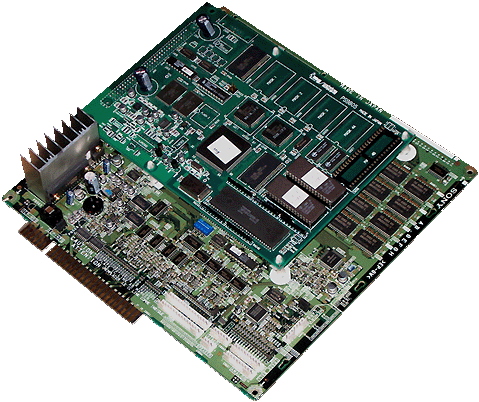

| PCB |
Sony
ZN-1 PS9805 |
|
CPU
|
R3000A 32 bit
RISC processor, Clock - 33.8688MHz, Operating performance - 30 MIPS,
Instruction Cache - 4KB |
| Graphix |
360,000 polygons/sec,
Sprite/BG drawing, Adjustable frame buffer, No line restriction,
4,000 8x8 pixel sprites with individual scaling and rotation, Simultaneous
backgrounds (Parallax scrolling)
res. 256x224 - 740x480, colours: 16.7 mio
Rotation, Scaling up/down, Warping, Transparency, Fading, Priority,
Vertical and horizontal line scroll |
|
Sound
|
Playstation
SPU, 24 Channels, 44.1KHz sample rate, PCM audio source, Digital
effects include: Envelope, Looping, Digital Reverb, Load up to 512K
of sampled waveforms, Supports MIDI Instruments. |
|
RAM
|
2MB Main /
2MB Graphics / 512KB Sound |
Source: www.system16.com
|
